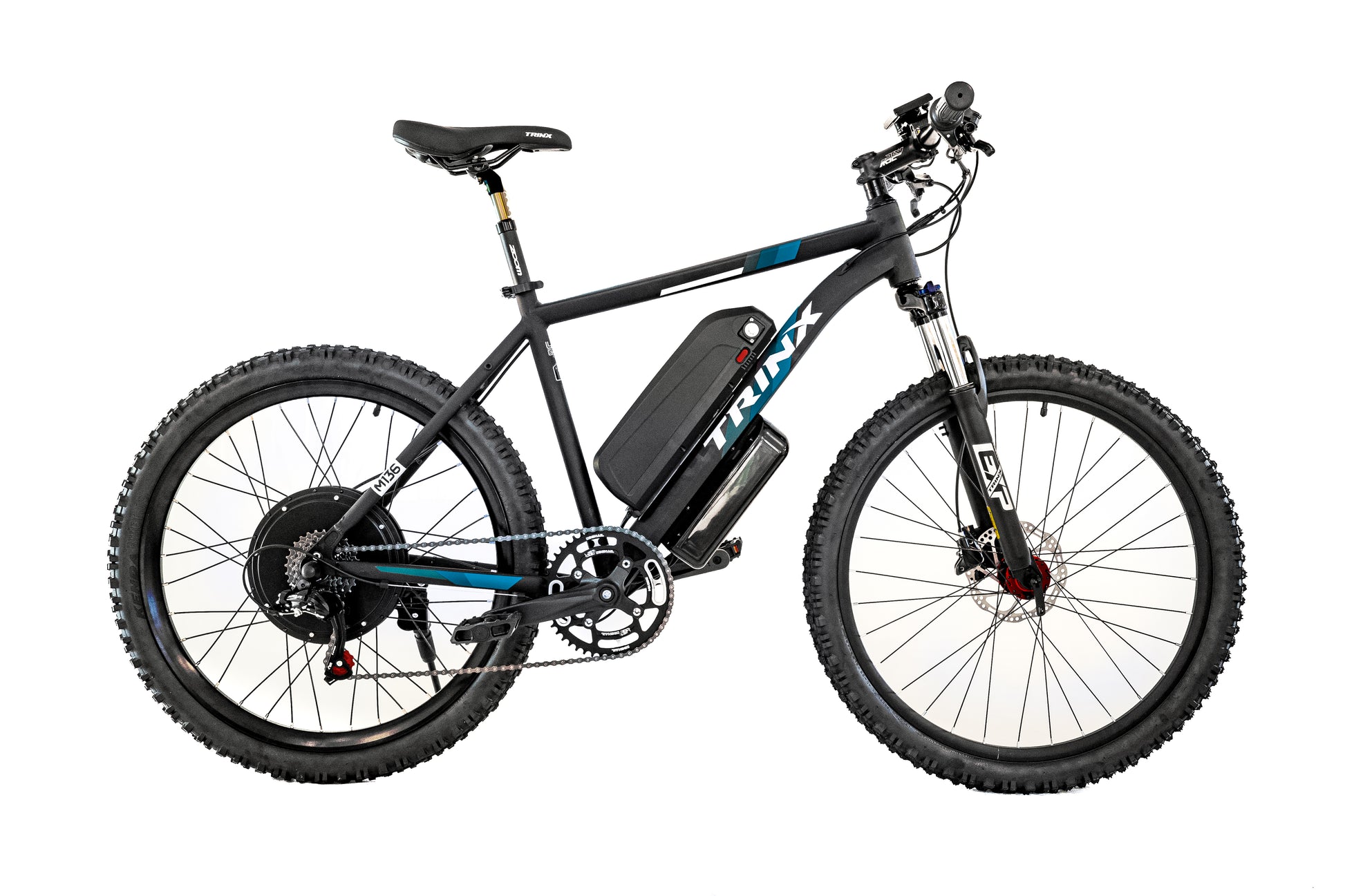

fischer fahrräder e bike em 1725 Trinx Performance Electric Mountain Bike – Electric Pedal Power

fischer fahrräder e bike em 1725 Trinx Performance Electric Mountain Bike – Electric Pedal Power*Local pickup or delivery within 3977 area (enquire for delivery availability). This item does not include shipping costs and may require 23 weeks for procurement, depending on availability (please check before purchase). Contact us here for any questions. DESCRIPTION The Trinx E Bike (Performance e MTB) delivers smooth, efficient torque for daily commuting and weekend rides. Its high torque direct drive motor helps with hills, heavier loads, and

*Local pickup or delivery within 3977 area (enquire for delivery availability). This item does not include shipping costs and may require 2–3 weeks for procurement, depending on availability (please check before purchase). Contact us here for any questions.

DESCRIPTION

The Trinx E-Bike (Performance e-MTB) delivers smooth, efficient torque for daily commuting and weekend rides. Its high-torque direct-drive motor helps with hills, heavier loads, and strong headwinds.

Featuring a direct-drive brushless motor and long-range lithium-ion battery, it can achieve 60+ km at 25 km/h, outperforming other bikes in this price range. The battery charges easily on or off the bike.

Hydraulic disc brakes and grippy tyres provide reliable stopping power in all conditions.

Legal Use Notice: Please check your local laws before purchasing. This e-bike is intended for off-road/private-property use unless permitted. We also offer a 250W version (select without throttle) which meets most municipal requirements, but you are responsible for confirming local compliance.

SPECIFICATIONS

• Models:
  • Trinx Performance M136
  • M600 Elite Electric Bike
• Frame sizes:
  • M136: 17" (M), 19” (L), 21" (XL)
  • M600: 19" (L)
• Colour:
  • M136: Matt Black/Red or Matt Black/Blue
  • M600: Glossy Blue/Black
• Frame: 6061 Aluminium
• Gears: 1 x 7-speed Shimano derailleur (or select single speed)
• Brakes:
  • M136: Shimano MT200 Hydraulic disc
  • M600: RSX or X-Spark or compatible Hydraulic disc (ask us if you want Shimano MT200)
• Tyres:
  • M136: 26” x 2.35” Kenda
  • M600: 27.5" x 2.35" Kenda
• Motor: Rear Electric Brushless DC direct drive
• Torque:
  • 250W: 25+ Nm
  • 1000W: 40+ Nm
  • 1500W: 50+ Nm
  • 2000W: 70+ Nm
  • 3000W: 85+ Nm
  • 5000W: 90+ Nm
  • 7000W: 100+ Nm
• Power: 250W continuous (or up to 7000W unrestricted - select model)
• Speed: 25 km/hr (or as follows in off-road unrestircted mode):
  • 250W: 35 km/hr

  • 1000W: 55 km/hr
  • 1500W: 55 km/hr
  • 2000W: 75 km/hr (with 72V battery or 55 km/hr with 52V battery)
  • 3000W: 90 km/hr
  • 5000W: 90 km/hr
  • 7000W: 90 km/hr
• Range at 25 km/hr (will vary based on rider weight, terrain and conditions):
  • 52V 13Ah: 60 km
  • 52V 20Ah: 80 km
  • 72V 20Ah: 100 km
  • 72V 25Ah: 110 km
• Weight (will vary based on battery requirements):
  • 250W: 24 kg
  • 1000W: 26 kg
  • 1500W: 27 kg
  • 2000W: 30 kg
  • 3000W: 35 kg
  • 5000W: 35 kg
  • 7000W: 36 kg
• Spokes: Steel 12Gx2.6mm
• Bearings: Sealed cartridge
• Load: 110-120 kg
• Battery (Li-ion):
  • 52V 13Ah: 680Wh Generic Cells 35A BMS Hardcase Hailong STD
  • 52V 20Ah: 1040Wh Samsung 50G 60A BMS Hardcase Hailong G80
  • 72V 20Ah: 1440Wh Samsung 50S 60A BMS Hardcase Triangle
  • 72V 25Ah: 1800Wh Samsung 50S 100A BMS Hardcase Triangle
• Charger:
  • 52V Nom. (58.8V) 2A or
  • 72V Nom. (84V) 3A
• Suspension: Front hydraulic lock-out (select Trinx standard or upgraded Suntour Fork), rear suspension seat post (optional)

MORE DETAILS

• USB port in battery for phone or light charging
• Removable battery for convenient charging (with 52V Battery only)
• Keys provided to lock battery (with 52V Battery only)
• Throttle for non-pedal or pedal-assisted use
• Suitable for paved surfaces, not for jumps, wheelies, skids or downhill riding
• Warranty does not cover intentional misuse of the bike

NOTE: Fully charge the battery before first use, leaving it switched 'on' during charging.

The E-Bike is not suitable for heavy rain, ponding water, or very wet muddy areas. Clean with a damp cloth only.

NOTES

• Hold 'M' button to turn on display
• Bike can also be used without electric function
• Check 'P08' setting for 25km/hr limit

ASSEMBLY INSTRUCTIONS

If opting for shipment (additional fees apply) then minor assembly is required: handlebar, pedals, front brake disc. Tools needed: Allen key set, 15mm spanner. Please contact us for assistance should you need help.

PACKAGE INCLUDES

• 1 x Trinx Electric Bike
• 1 x Battery (fitted)
• 1 x Battery Charger
• 2 x Security Keys
• 1 x Instruction Manual for the screen
